Rigid welding equipment

也可稱為初級自動化設備，大部分是根據開環控制原理設計的。雖然設備自動完成整個焊接過程，但無法對整個過程中參數的波動進行閉環反饋控制，也無法隨機修正可能出現的偏差。

Also known as primary automation equipment, most of them are designed according to the open-loop control principle. Although the equipment automatically completes the whole welding process, it can not carry out closed-loop feedback control for the fluctuation of parameters in the whole process, nor can it randomly correct the possible deviation.

2自適應控制自動化焊接設備

2 adaptive control automatic welding equipment

是一種自動化程度高的焊接設備，裝有電子傳感電路和傳感器，自動引導和跟蹤焊縫軌跡，對主要參數實行閉環反饋控制。整個焊接過程將按照預設的程序和工藝參數自動完成。

It is a welding equipment with high degree of automation. It is equipped with electronic sensing circuit and sensor to automatically guide and track the weld track and implement closed-loop feedback control for main parameters. The whole welding process will be completed automatically according to the preset procedures and process parameters.

3智能化自動焊接設備

3 intelligent automatic welding equipment

它采用多種檢測元件，如視覺傳感器觸摸傳感器聽覺傳感器和激光掃描儀等，并借助計算機軟件系統數據庫和系統進行實時識別判斷檢測計算自動編程。焊接參數的存儲和自動生成焊接日志文件的功能。

It uses a variety of detection elements, such as visual sensor, touch sensor, auditory sensor and laser scanner, and carries out real-time identification, judgment, detection, calculation and automatic programming with the help of computer software system database and expert system. Storage of welding parameters and automatic generation of welding log files.

自動焊接設備的組成：

Composition of automatic welding equipment:

1焊接電源其輸出功率焊接特性需要與建議的工藝方法相匹配，并配有連接到主控制器的接口。

1. The output power and welding characteristics of the welding power supply shall match the recommended process method, and shall be equipped with an interface connected to the main controller.

2送絲機及其調速控制系統對于送絲機速度控制精度要求較高的送絲機，控制電路需要加速度反饋。

2 wire feeder and its speed regulation control system for wire feeder with high speed control accuracy, the control circuit needs acceleration feedback.

3焊頭。其運動機構由焊頭焊頭支撐架懸掛小車等組成，低于焊頭機構，其驅動系統需要采用帶編碼器的伺服電機。

3 welding head. Its motion mechanism is composed of welding head, welding head support frame, suspension trolley, etc., which is lower than the welding head mechanism, and its driving system needs to adopt servo motor with encoder.

4行走機構，如焊輥架頭尾架翻轉機轉臺變位機等，活動行走機構需要由伺服電機驅動。

4 traveling mechanism, such as welding roller frame, head and tail frame turnover machine, turntable positioner, etc. the movable traveling mechanism needs to be driven by servo motor.

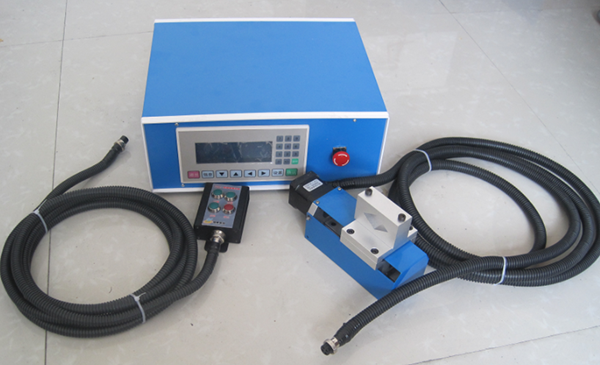

5主控制器，又稱系統控制器，主要用于自動焊接設備各部件的鏈接控制，焊接程序的控制，焊接和擴展主要參數的設置調整和顯示故障診斷和人機對話等控制功能。

5 main controller, also known as system controller, is mainly used for link control of various components of automatic welding equipment, control of welding program, setting, adjustment and display of main parameters of welding and expansion, fault diagnosis, man-machine dialogue and other control functions.

6計算機軟件。設備中常用的軟件有編程軟件功能軟件系統和工藝方法軟件等。

6 computer software. The software commonly used in the equipment includes programming software, function software, expert system and process method software.

7送絲系統循環水冷卻系統流量回收輸送裝置焊絲架拖鏈及電纜軟管機構結構設計三部分電控設計等輔助裝置。

7 wire feeding system circulating water cooling system flow recovery conveyor wire rack drag chain and cable hose mechanism structure design three parts electric control design and other auxiliary devices.

8焊頭跟蹤或?qū)驒C構弧壓自動控制器焊槍偏航及監控系統。

8 welding head tracking or guiding mechanism arc voltage automatic controller welding gun yaw and monitoring system.
